KarnoTech Poultry Dosatron (Drug Injection System)

KarnoTech Poultry Dosatron (Drug Injection System)

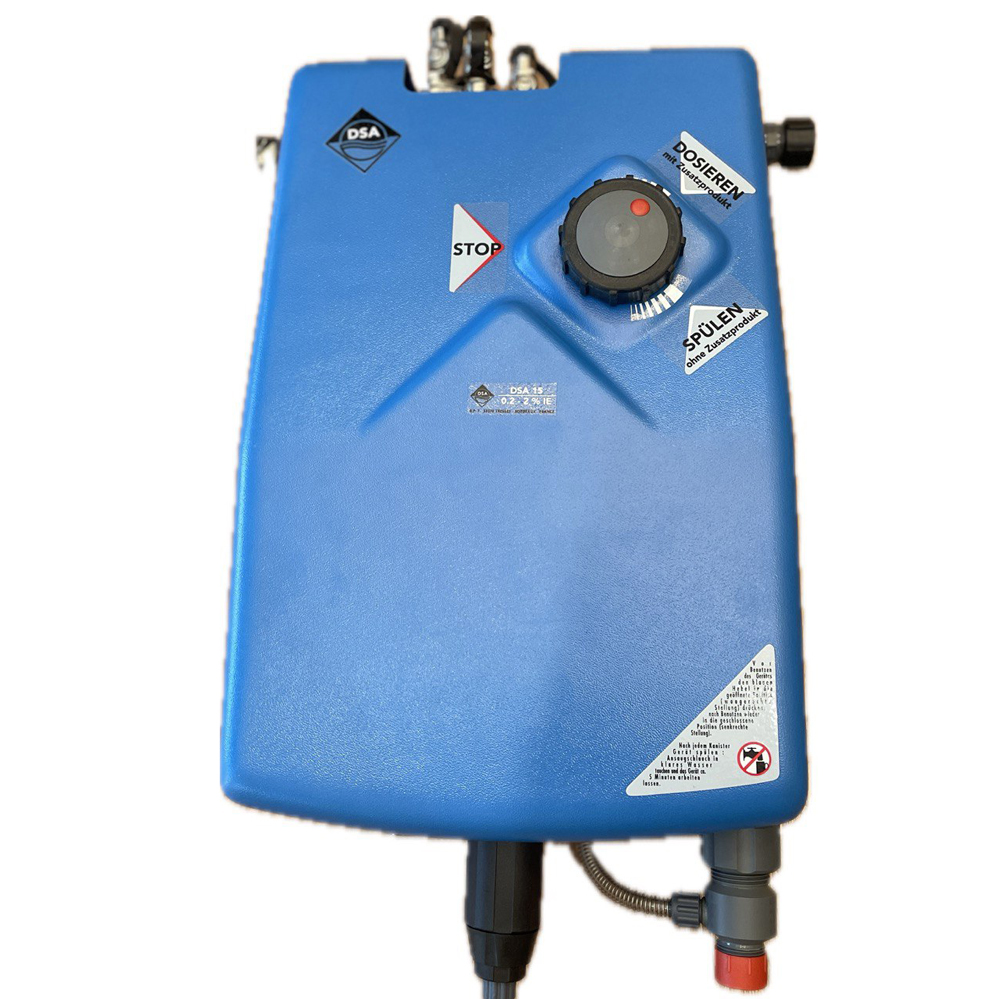

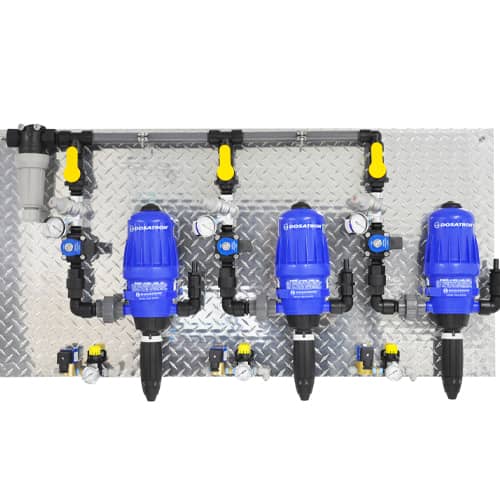

As you have seen, the components of Dosatron include:

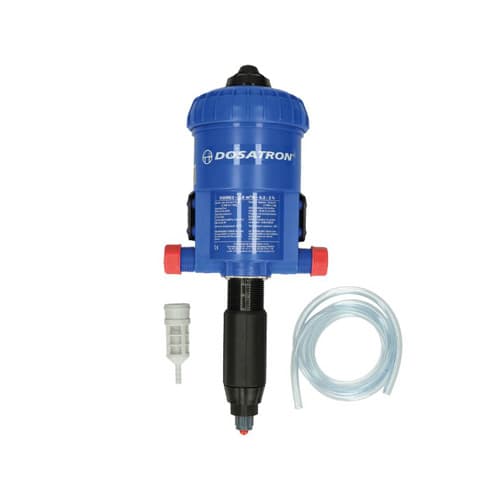

• Drug injection pump: introducing the required dose of medicine into drinking water lines
• Pressure switch and pressure gauge: Water pressure regulator
• Water filter: water purifier entering the system
• Water meter: measuring the amount of water consumption
• Three-way valve: It is a system washer

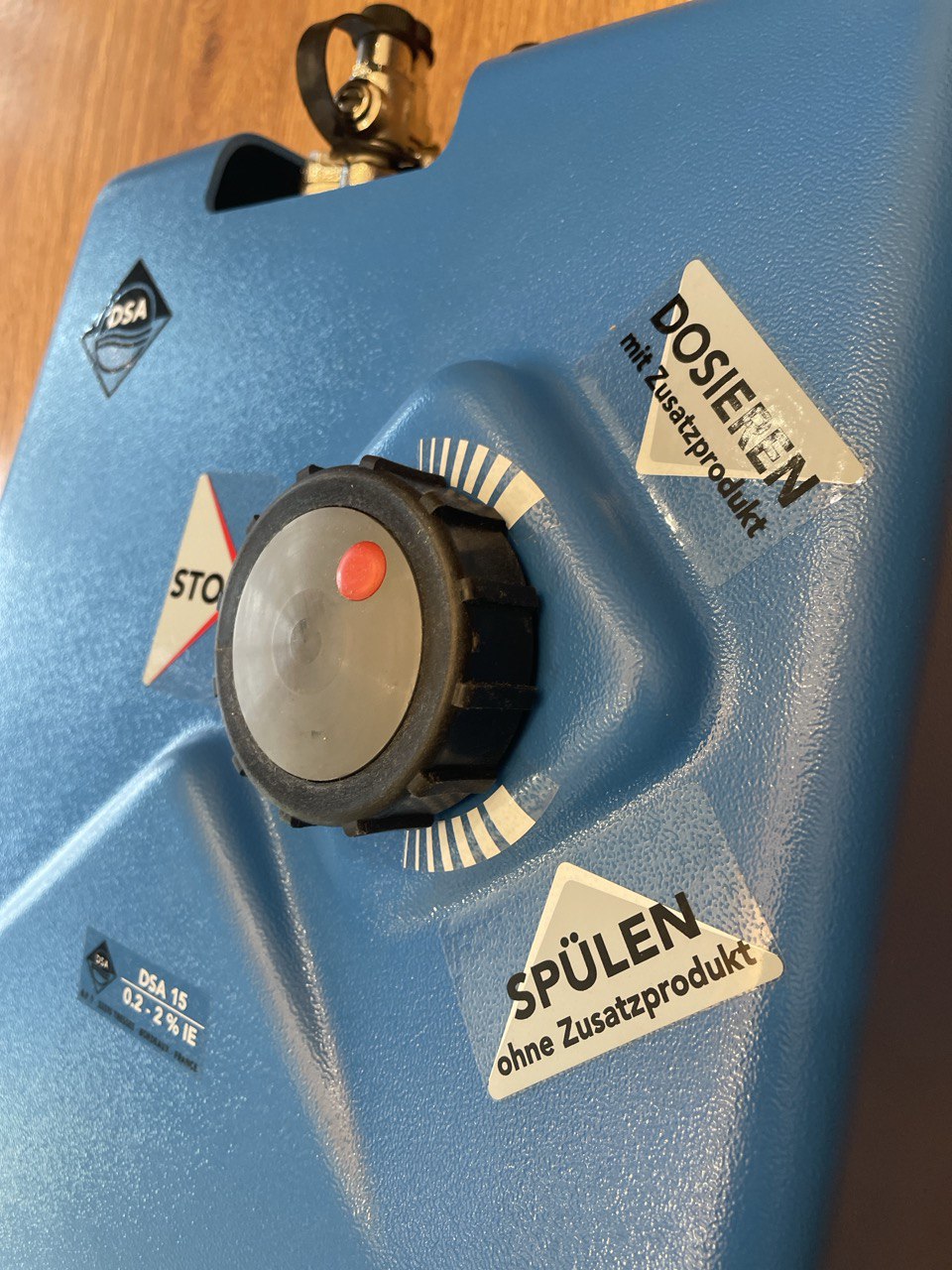

The purpose of using this system is to eliminate the source of water in chicken farms and increase the level of certainty of complete vaccination by drinking method. The function of this system is that it is placed in the piping of the poultry drinking system and by adjusting the desired dose by the screw located at the bottom of the device, the vaccines are injected directly into the drinking lines.

When the water enters the drug injection system, the hydraulic motor starts to move up and down inside the body of the Dosatron and injects the vaccine into the main reservoir with a function similar to a syringe. After the vaccine and water are dissolved, this compound is injected into drinking water systems.

Advantages of using Carnot drug injection system (Dosatron):

• Eliminate the Use of Water Source
• Uniform Access of the Bird to the Drug
• Maintaining the Properties and Increasing the Useful Life of the Drug
• Preventing Sedimentation and Clogging of Drinking Lines and Nipples
• Easy Washing
• Reducing Drug Consumption and Preventing its Wastage

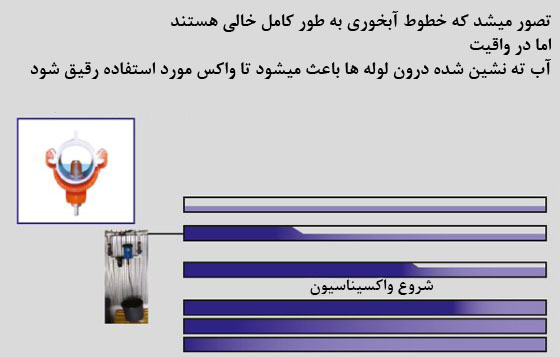

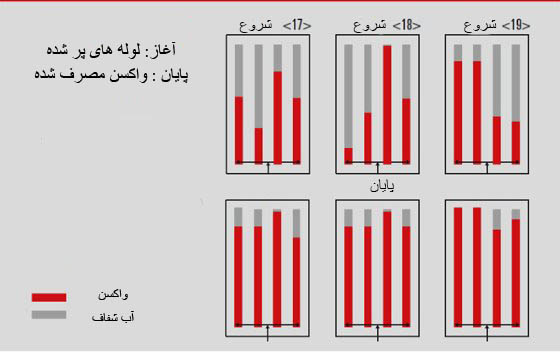

As you know, potable vaccines have a certain lifespan to be effective, during manual vaccination, first all the required vaccine is reduced in a water source, and after the nipple drinking system is completely emptied, the drinking lines are the water source is connected and the reduced vaccine enters the drinking system. In this method, the time to transfer the vaccine to the drinking water is longer and reduces the useful life of the vaccines that are provided to the poultry.

One of the problems of nipple drinking lines that has been solved by Dosatrons is the clogging of nipple needles and as a result reducing the amount of water available to poultry. Clogged needles occur due to the deposition of drugs and other things in the drinking pipes, and one of the management methods to prevent this is washing the drinking lines at the end of each period and after each vaccination to prevent drug deposition in the lines and this is made very easy by the Dosatron product.

Other applications of the drug injection system

The drug injection system is not only aimed at chicken farms, but this system is also used in agricultural industries, and with this product, you can control the dosage of fertilizers, pesticides, strengthening materials, etc., which are needed for plants, and distribute them evenly.
