Attributes:
Pad thickness: 10 cm
Width of each block: 60 cm
Height of each block: 1 to 2 meters
Product model: 7090
Number of leaves in one meter length: 143
Wave length: 7 mm

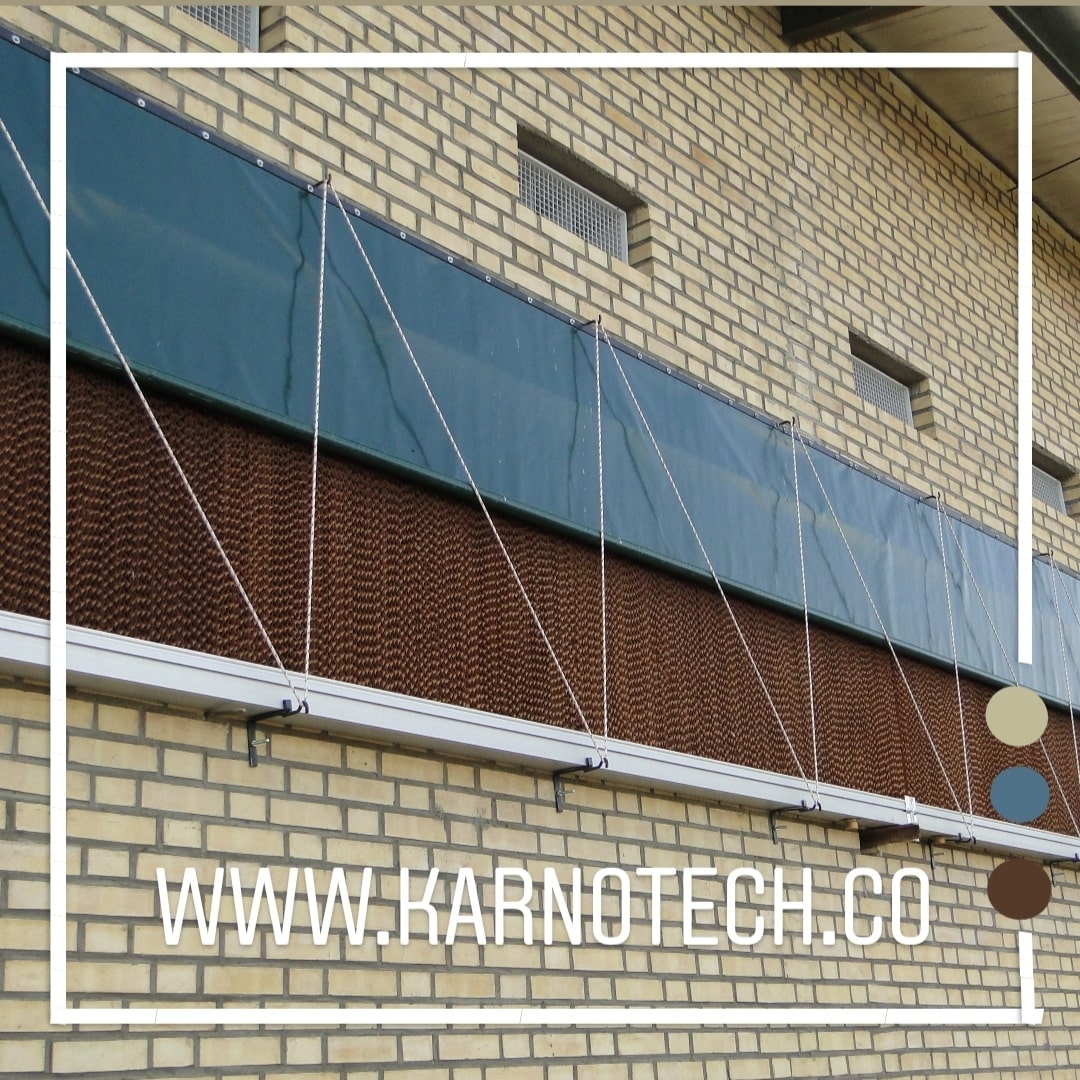

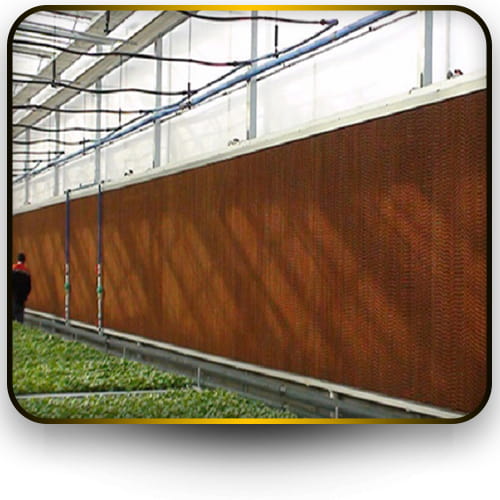

Cellulose cooling pads and evaporative cooling systems in general do not reduce heat stress in birds by themselves. In fact, they can make the bird’s natural work to reduce its body temperature (crush, evaporation of water through the respiratory system) more difficult. Because although they lower the temperature of the salon, this work is associated with an increase in humidity. For every degree Celsius that an evaporative cooling system lowers the indoor temperature, it increases the humidity in the house by approximately 2.5%. Therefore, when your cellulose pad reduces the temperature of the incoming air from 35 degrees to 30 degrees Celsius, they increase the humidity in the salon by 25%.
Since more than 50% of a broiler’s ability to escape from overheating is due to evaporation from the respiratory system, a 25% increase in humidity can have a significant effect on the bird’s ability to cool itself.
You can see how this system works in the video below.
The reason why cellulose pads are successful for keeping broilers cool is their combination with the speed of air produced by an industrial fan. Without a minimum air velocity of 2.5 m/s, evaporative cooling pads can bring a broiler’s body temperature close to lethal levels in just a few hours.
The importance of using a cellulose pad is not hidden from anyone today, but there are some points that you should pay attention to when using this system.
As mentioned, the cellulose pad works on the basis of evaporation. This will cause the poultry house to cool down and increase its humidity. Now, in areas of the country where the humidity is high, it is not recommended to use pad cooling. Because it cannot provide the necessary efficiency for cooling the hall. Since most of the regions of the country have a hot and dry climate, the use of cellulose pads is recommended for this category of salons. Therefore, one of the special products of KarnoTech is its cellulose pad.

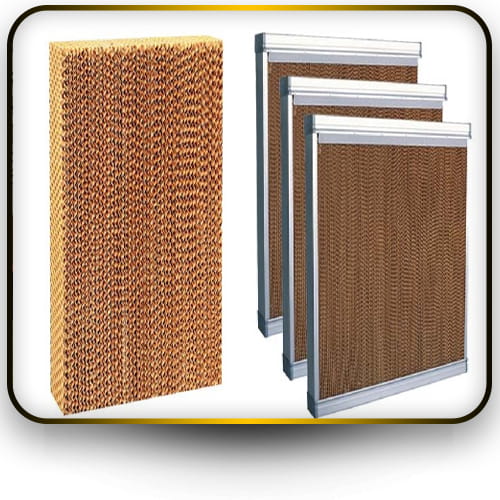

The qualities of cellulose pads are different, which has a significant impact on its shelf life. At KarnoTech, we have provided different types of cellulosic pad quality, such as Finnish, Chinese, Dutch and Iranian breeds, for the breeding of dear breeders.
For more information, you can contact our online support
.
