Shutter Inlet

Shutter Inlet

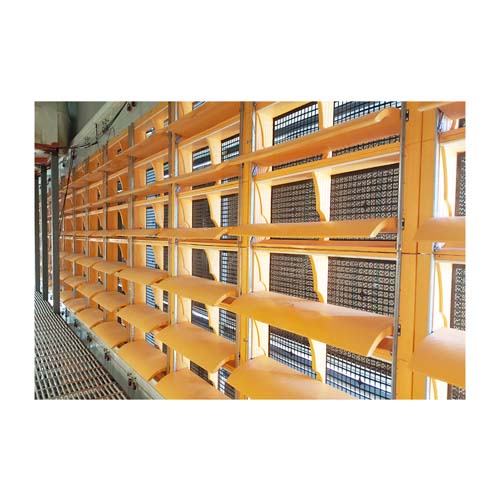

The air intake shutter is one of the minimum ventilation products. This product is usually placed in front of cooling pads, and has two main uses:

• Cold air is prevented from entering the hall from the opposite point of the pads into the halls.
• In the hot seasons of the year, the incoming air conducts well through the cellulose pads.

Therefore, insulation of shutters is of great importance.

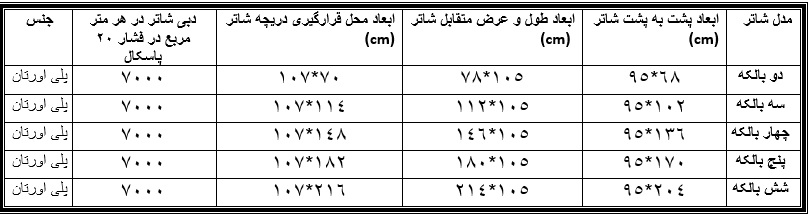

Usually, the dimensions of the shutters are calculated based on the cellulose pads system, and for better performance and better air conduction, the height of the shutters is calculated a little lower than the height of the pads.

The number of layers of shutters is calculated according to the height of the air inlet. In general, the height of two-story shutters is 80 cm, the height of three-story shutters is 1.1 meters, and according to the increase in height, the number of floors is added in the same way.
